X220112

X220112 Donaldson Water Fuel Sensor Kit

Suits: Ryco 4X4 Fuel Water Separator Kits, Donaldson Twist & Drain Filters, Ryco Z980, Z981, Z982, Z9805, Donaldson P550588, P551615, p553207, P902976

Water is one of the most harmful contaminants found in fuel, especially in sensitive common rail systems, making a Fuel Water Separating Filter an essential component of a modern diesel engine fuel system. Donaldson’s Water in Fuel Sensor & Display Kit is designed to give a visual warning for when separated water is present in the filter and needs to be drained. The kit contains a drain valve with an electrical plug, wiring loom and a dash mount LED display.

X220112 Features

•Detects separated water in both filter and water collection bowl

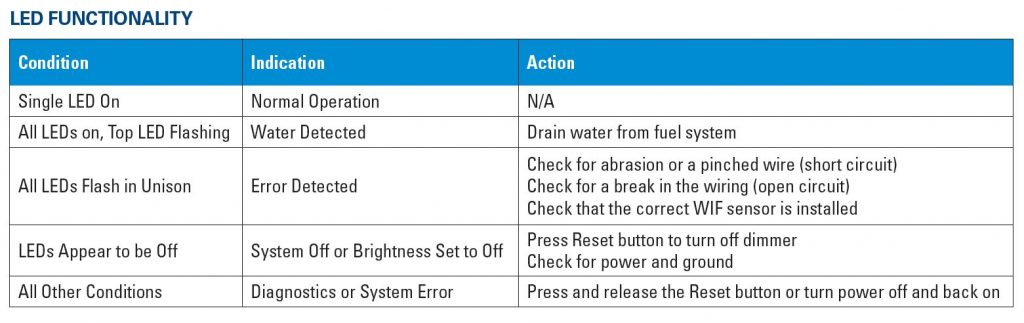

•Adjustable LED display brightness
•Easy 1/4 turn valve to drain water
•Automatic display reset after water is drained
•Can be used with any Donaldson Twist&Drain™ fuel filters

Specifications

•Power supply 6V to 30V DC, ignition activated circuit
•Fuse max 10AMP
•Display 66.3mm (w) x 50mm (h) x 15.4mm (d)
•Mounting holes 57.9mm apart
•Hole sizes for wires 12.7mm

X220112 Availability

Perth: Usually Stocked
Melbourne: Usually Stocked
Sydney: Usually Stocked
Adelaide, Hobart, Brisbane: Fast Shipping from WA or NSW
